Permanent Remote Racking Assembly for 5kV Magne-Blast Breaker
The remote racking equipment allows viewing and connecting Magne-blast breakers from a safe distance - outside the arc flash boundary.

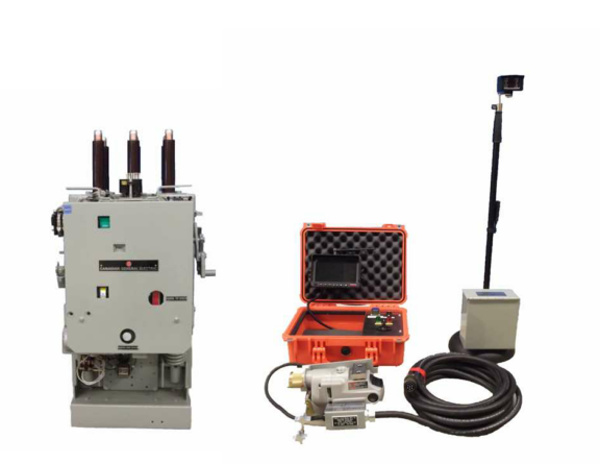

Remote operation of the racking motor including the clutch mechanism and a permanently mounted remote control as follows:

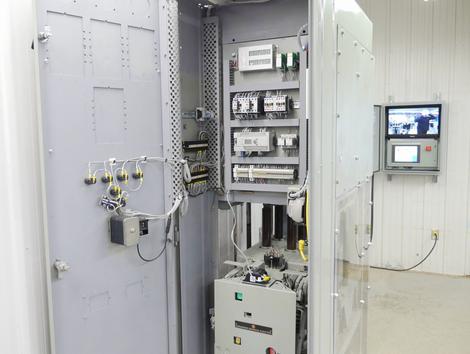

- Permanently mounted design
- Industrial enclosure
- Pushbutton and indicators and/or touchscreen.
- Video viewing screen to display camera view of breaker racking
- Elevating motor with base and clutch mechanism
- A camera for viewing breaker racking progress c/w mounting bracket.
- 120Vac and 125Vdc contactors and controls.
- Elevating motor overcurrent, jam and level protection and alarm
